Capture Server Pro - Catalogs Configuration

On the Configuration app’s Catalogs page, you can add user catalogs to the farm, which are lists of users and groups who can be assigned permissions in Apps. Catalogs can either be local, consisting of users and groups that you create, or linked to an external source such as Active Directory or Azure Active Directory.

For more information on Users, reference the Users Configuration Article.
For more information on Groups, reference the Groups Configuration Article.

Actions you can do for catalogs are below:

• Add a Local User Catalog
• Add an Active Directory Catalog
• Add an Azure Active Directory Catalog
• Rename a Catalog
• Delete a Catalog

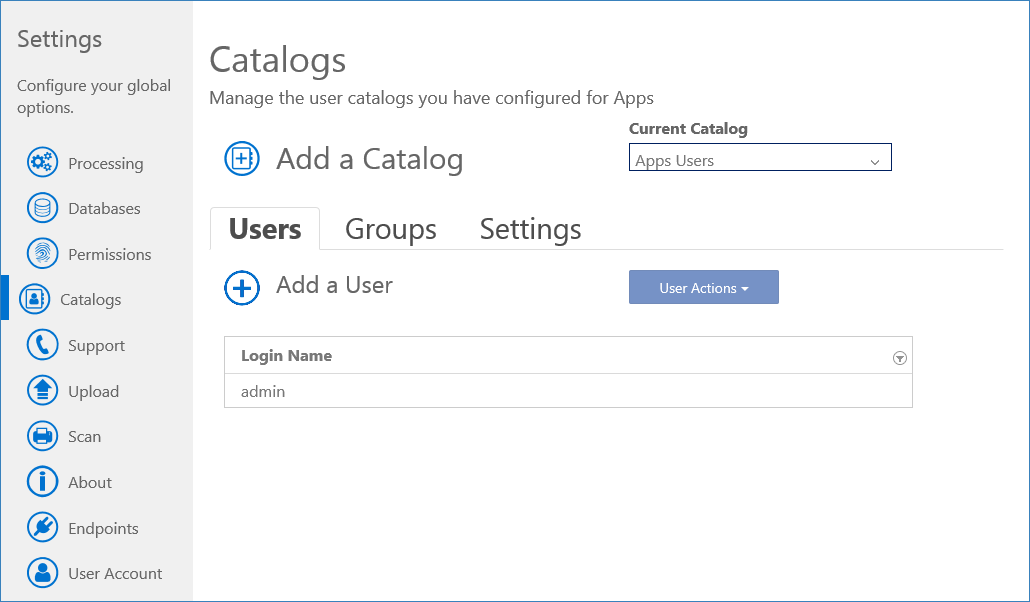

Example: Catalogs Page

Add a Catalog

Add a Local User Catalog

1. Open the Configuration app's Catalogs
2. Click Add a Catalog. The Add a Catalog wizard will open.
3. On the Welcome page, configure the basic settings for your catalog, and then click Next.
   1. Type a Catalog Name.
   2. Select Local in the Catalog Type
4. On the Catalog created successfully! page, click Save.

Add an Active Directory Catalog

1. Open the Configuration app's Catalogs
2. Click Add a Catalog. The Add a Catalog wizard will open.
3. On the Welcome page, configure the basic settings for your catalog.
   1. Type a Catalog Name.
   2. Select Active Directory in the Catalog Type
4. Click Next.
5. On the Connect to a Domain page, configure the domain controller.
   1. To use the domain controller that the server is connected to, select Current Directory.
   2. To specify a domain controller, select Remote Directory, and configure the Active Directory server information.
      NOTE: It is recommended that you do not use an account with an expiration date as the domain administrator account.
6. Click Next Page.
7. On the Catalog created successfully! page, click Save.

NOTE: For more information about configuring a remote directory, refer to the technical documentation.

Add an Azure Active Directory Catalog

1. Open the Configuration app's Catalogs
2. Click Add a Catalog. The Add a Catalog wizard will open.
3. On the Welcome page, configure the basic settings for your catalog.
   1. Type a Catalog Name.
   2. Select Azure Active Directory in the Catalog Type
4. Click Next.
5. On the Admin Consent page, click the Give Admin Consent. The Microsoft Sign In page will open in a new browser tab.
6. On the Microsoft Sign In page, sign in to your Azure Active Directory account.
7. Click Accept to grant permissions to Capture Server Pro, and then click Yes to grant access.
8. On the Admin Consent page, click Next Page.
9. On the Authentication page, click the Grant Access. The Microsoft Sign In page will open in a new browser tab.
10. On the Microsoft Sign In page, sign in to your Azure Active Directory account.
11. Click Yes to grant access.
12. On the Authentication page, click Next Page.
13. On the Catalog created successfully! page, click Save.

Rename a Catalog

1. Open the Configuration app's Catalogs
2. On the Settings tab, type a new Catalog Name.
3. Click Save Settings.

Delete a Catalog

1. Open the Configuration app's Catalogs
2. On the Settings tab, click Delete Catalog. The Delete Catalog window will open.
3. On the Delete Catalog window, click Confirm.
